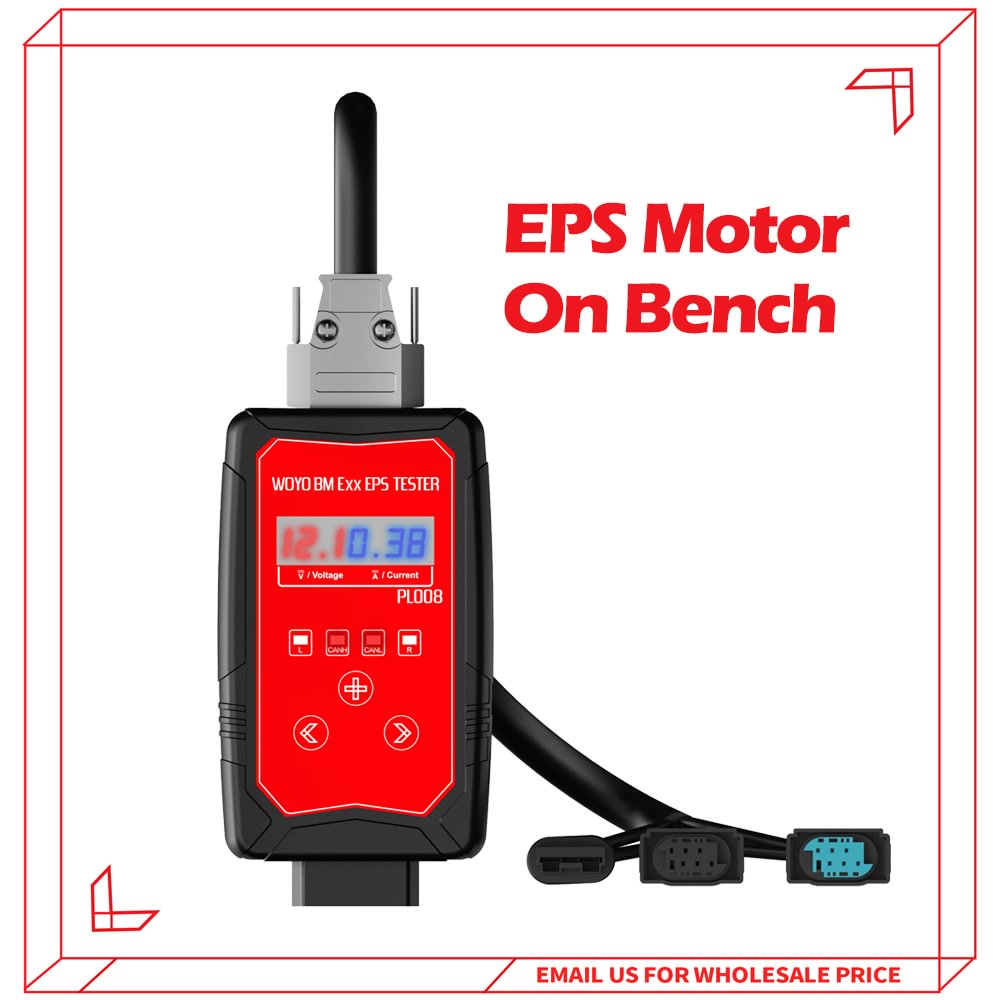

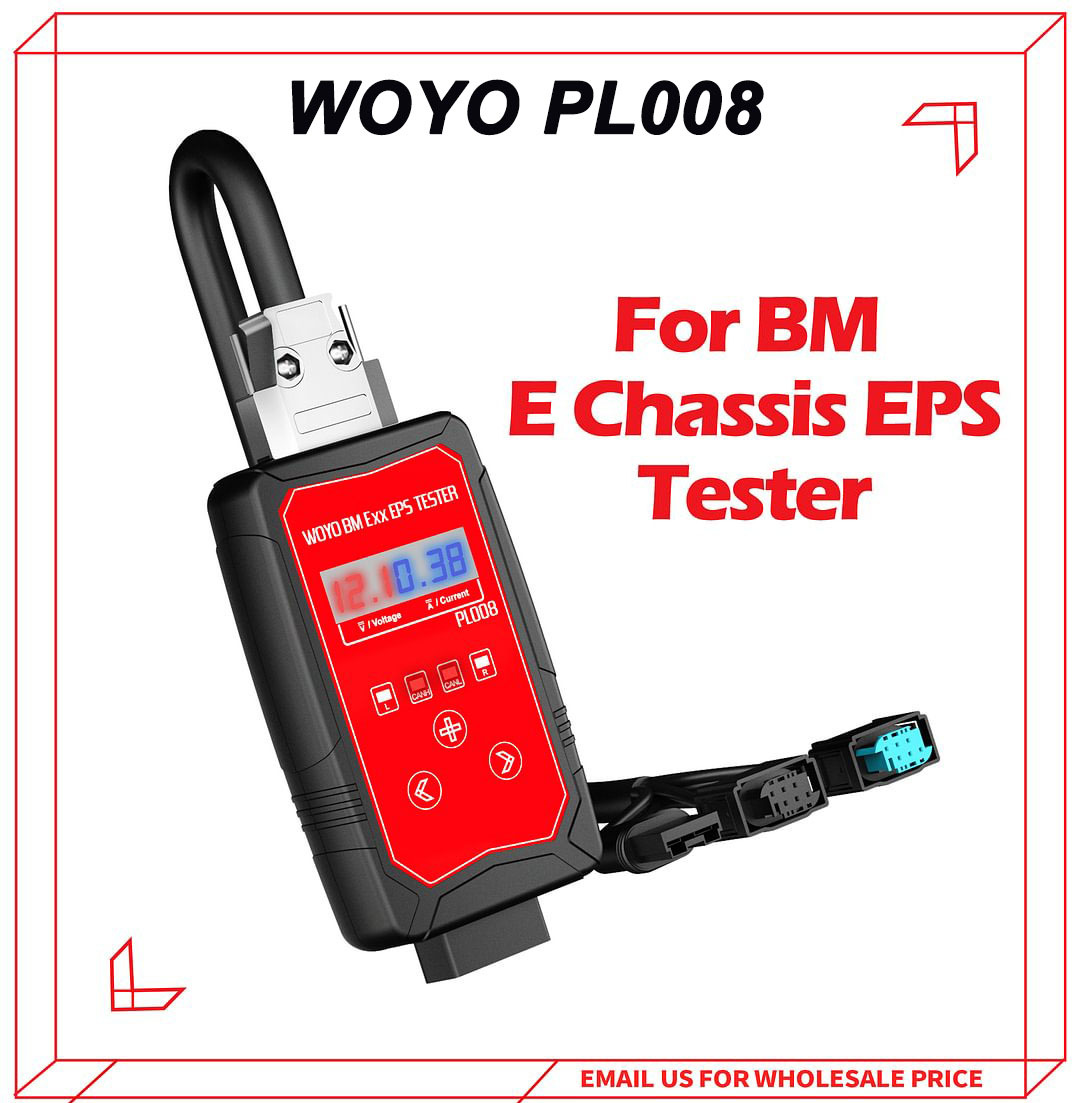

WOYO PL008 BMW EPS Tester for E Series Motor Device Driver On Bench Test

After repairing the EPS motor, connect it to this bench tester, can test directly to see if it works properly.

Features:

No need to reinstall the repaired EPS module in the car for repeated testing.

Function:

1.WOYO PL008 can easy to simulate torque sensor to drive EPS motor on bench.
2. Need to connect to the power supply about 12V >1A, the better is ≥2A.
3. PL008 can connect to the other diagnostic tools, for example, OBD scanner, etc.
4. Do the correct direction connect for the power jack of EPS motor, notice the "1" & "2" sign.
5. You can take it easy to rotate EPS motor, control the direction of rotation of the motor head and its speed ( long press the "+" sign to accelerate).

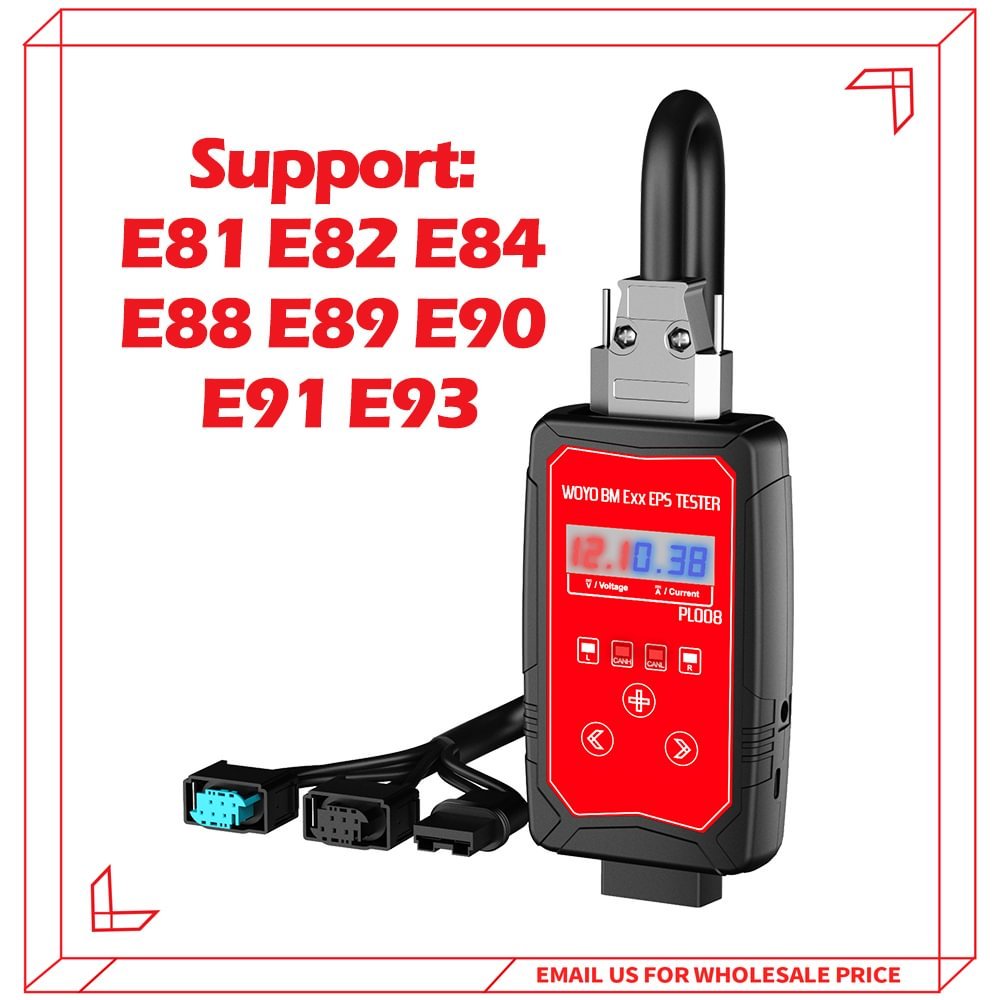

S​upport for BMW E-Chassis Models:

-- 1 series (E81) 2003 - 2012
-- 1 series cabrio (E88) 2007 - 2013
-- 1 series coupe (E82) 2007 - 2013
-- 3 series (E90) 2005 - 2011
-- 3 series Touring (E91) 2005 - 08.2012
-- 3 series cabrio (E93) 2006 - 2013
-- X1 (E84) 2009 - 2015
-- Z4 (E89) 2009 - 2016

How to use the WOYO BMW EPS Bench Tester?

1. “<” “>”:Left and right control the direction of rotation of the steering machine.
2. Screen: Display the working voltage or current of the tester.
3. “+” controls the motor rotation speed.
4.Support connecting other diagnostic scanners to check the real-time data of the steering machine.
