Why need the WOYO JLR GSM tester?
1. The plastic fastener inside GSM of Landrover Jaguar will breaken and damage easily, which cause the GSM being stuck or unable to use.WOYO Landrover Jaguar GSM tester kit includes metal fasteners for replacement.
2.
The Jaguar Land Rover GSM module often experiences the following Common Failure Symptoms:--Gear selection dial will not rise or fall;--Unable to select/switch drive mode;--Gear selection dial will not rotate;--Common fault codes: P176C -11 - Transmission Range Selector Lock Control Error;

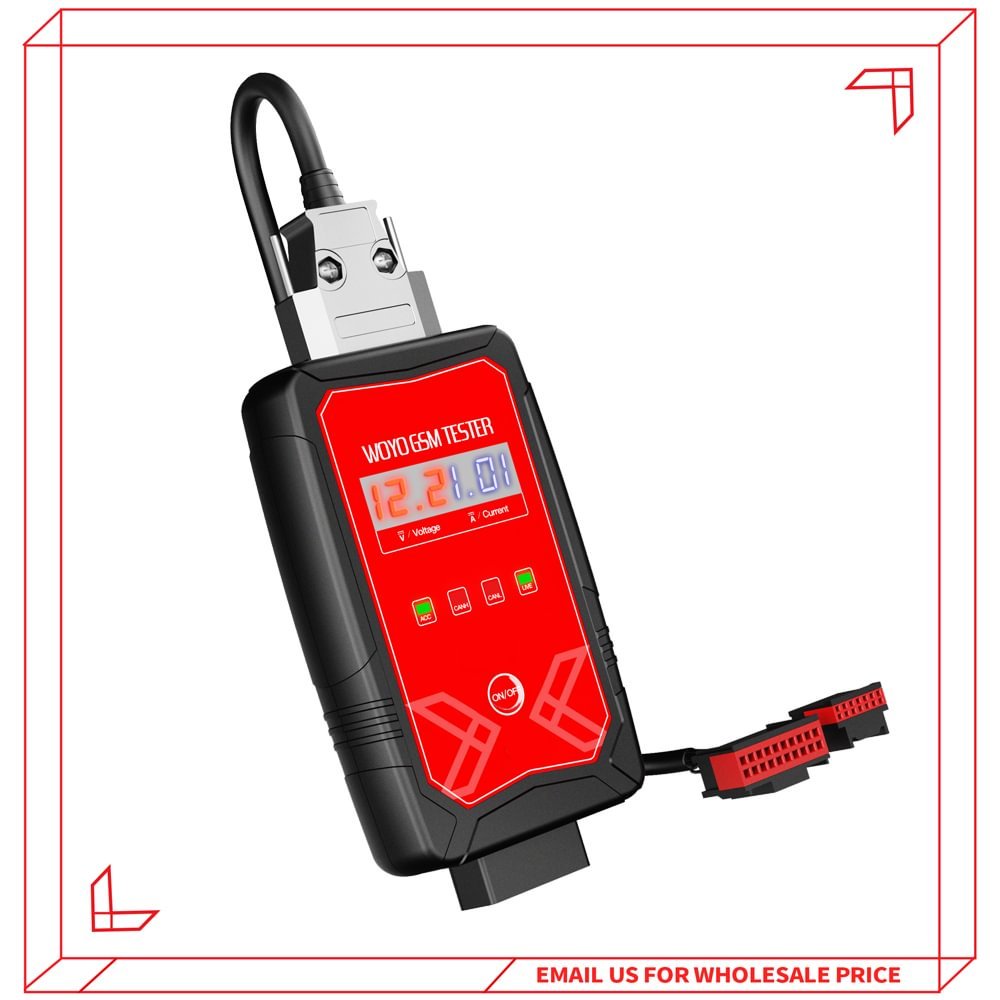

with the WOYO JLR GSM Tester, can control the GSM up and down when it doesn't assembly tovehicle; Identify vehicle model automatically, saving the query time; Simple operation, one button control of up and down, gear switching supported.
After repair, use the tester to test GSM without assembling it to vehicle, Which avoids it unable to operate after assembling the vehicle, repeated disassembly, and waste time.
Supported model list:
Landrover:
Freelander,Freelander(New), Evoque 6 Speed,Evoque 9 Speed, Discoverer 3,Discoverer 4,Discoverer 4(Old),Discoverer 4(New),
Discoverer 5,Discoverer Sport,Defender,Defender(New),
Range Rover(Old),Range Rover,Range Rover(New),Range Rover Sport(Old),Range Rover Sport,Range Rover Sport(New),
Range Rover Evoque(New),Range Rover Evoque II,Range Rover Velar,
L319(EH22),L319(BH42),L405(CPLA),L405(DPLA),L405(EK52),L405(GK52),L405(HPLA),L462(HPLA),
L538(BJ32),L538(EJ32),L538(GJ32),L538(HJ32),L550(EJ32),L550(GJ32),L550(HJ32),L560(J8A2)；
Jaguar:
S-TYPE, E-PACE,I-PACE, F-PACE(Old),F-PACE(New),F-TYPE,F-TYPE(New),F-PACE, XFL,XFL(Old),XFL(New),XJ,XJ(New),XJL,XJL(New),XK,XE,XE(Old),XE(New),XF,XF(XXX),XF(Old),XF(New),
X250(8X23),X250(DX23),X250(9X23),X260(HX73),X260(JX73),X260(GX73),X351(DW93),X351(GW93),X760(JX73),X760(GX73),X760(HX73),X761(HX73),X761(JX73)；

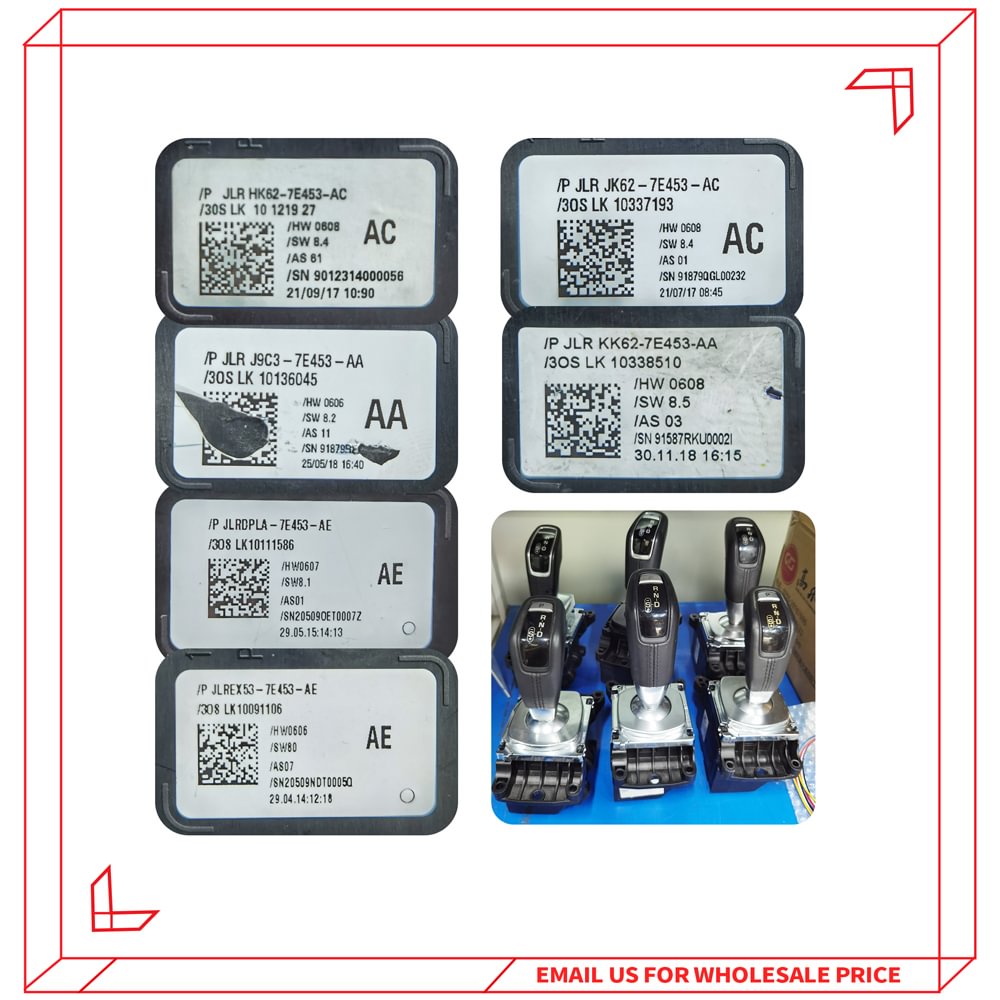

JLR HK62, JLR JK62, JLR J9C3, JLR KK62M JLR DPLA, JLR EX53 (for PL005 PRO only)

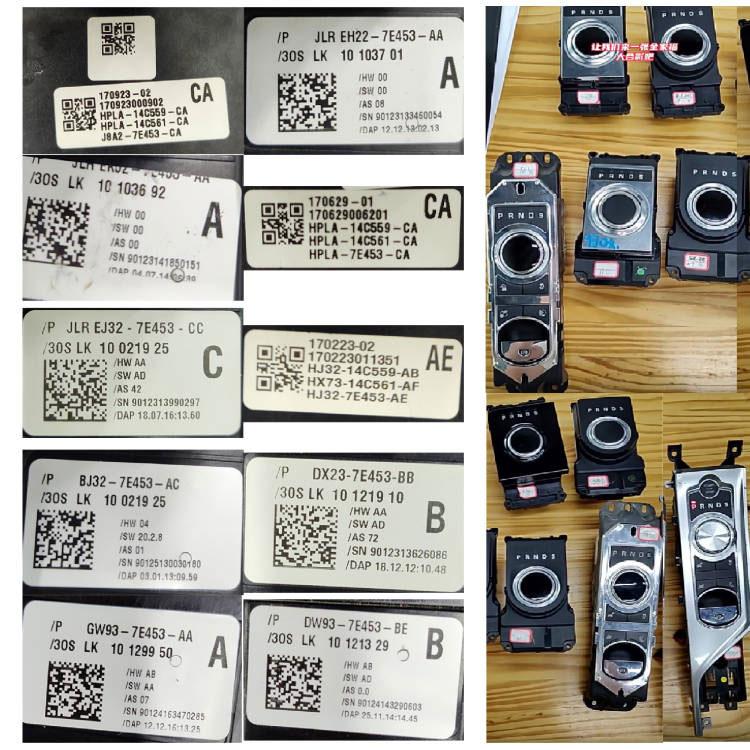

Different with PL005 and PL005 PRO
| Model |
Support GSM Modules |
Note
|

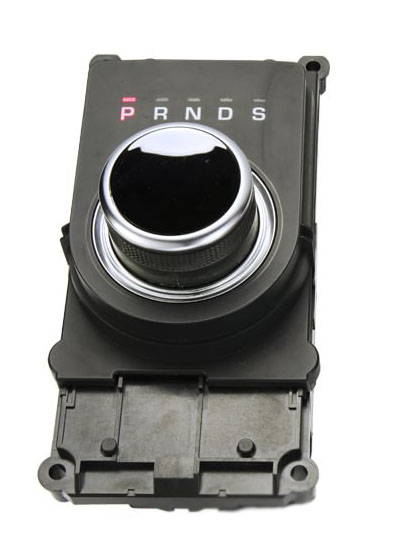

| PL005 |
|
 |
|

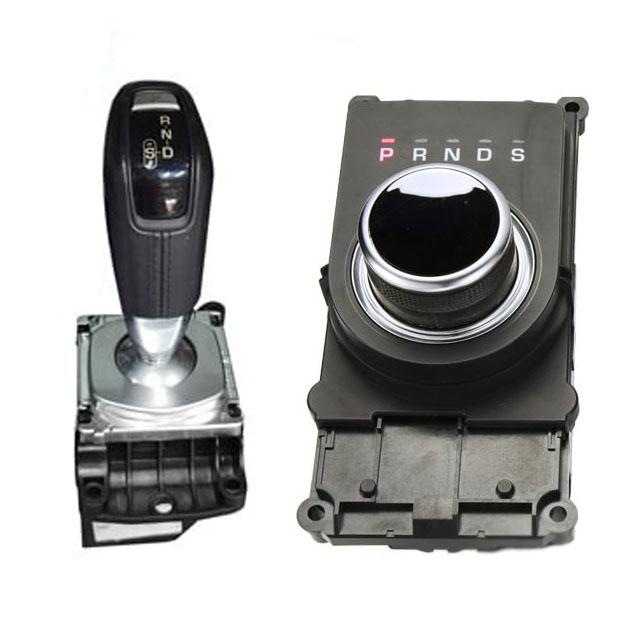

| PL005 PRO |
 |
|
 |

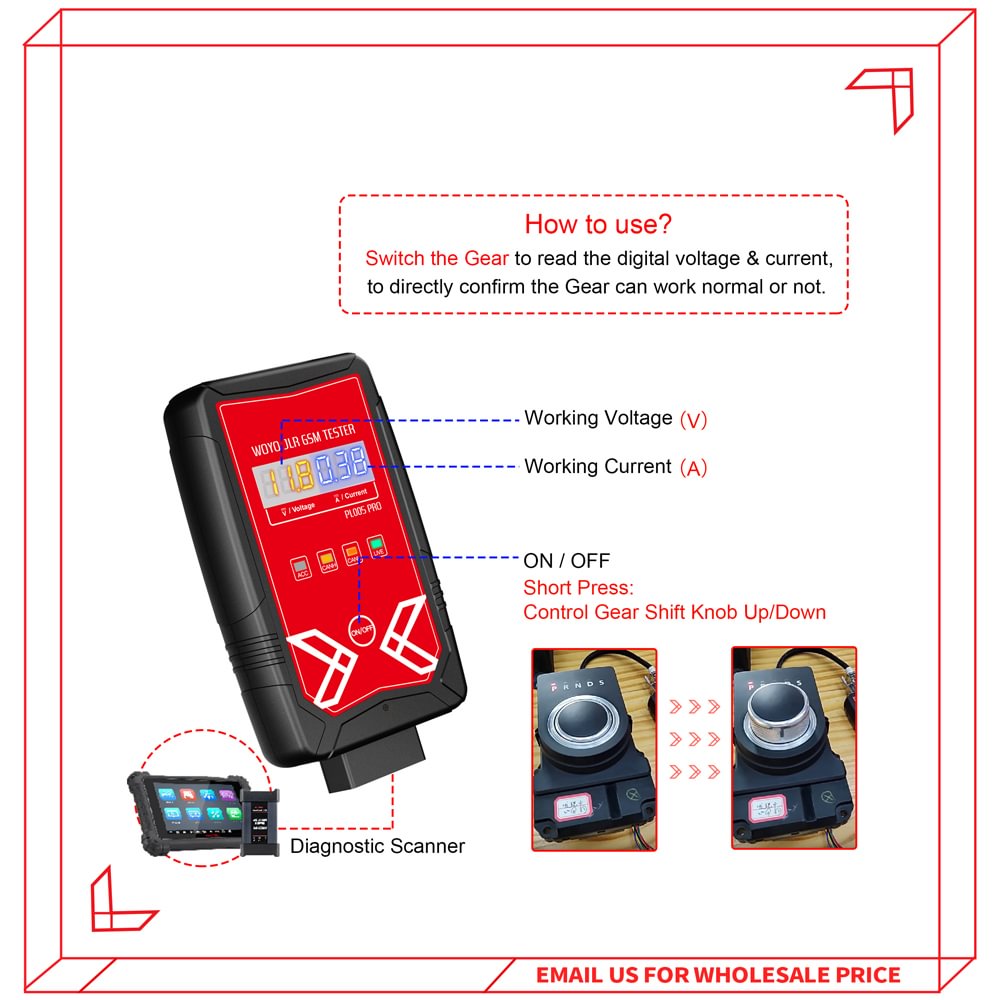

How to use WOYO GSM TESTER?

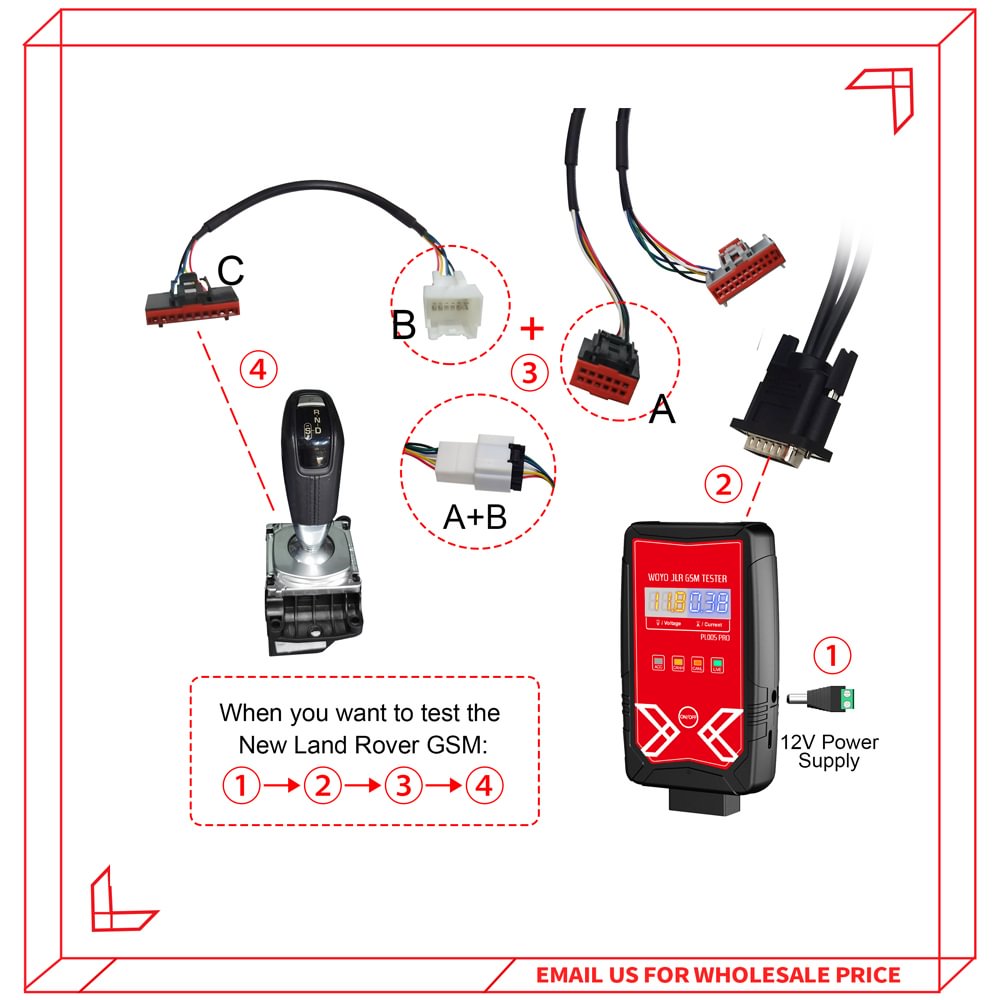

How to connect the PL005 PRO tester when testing the new Jaguar Land Rover GSM modules

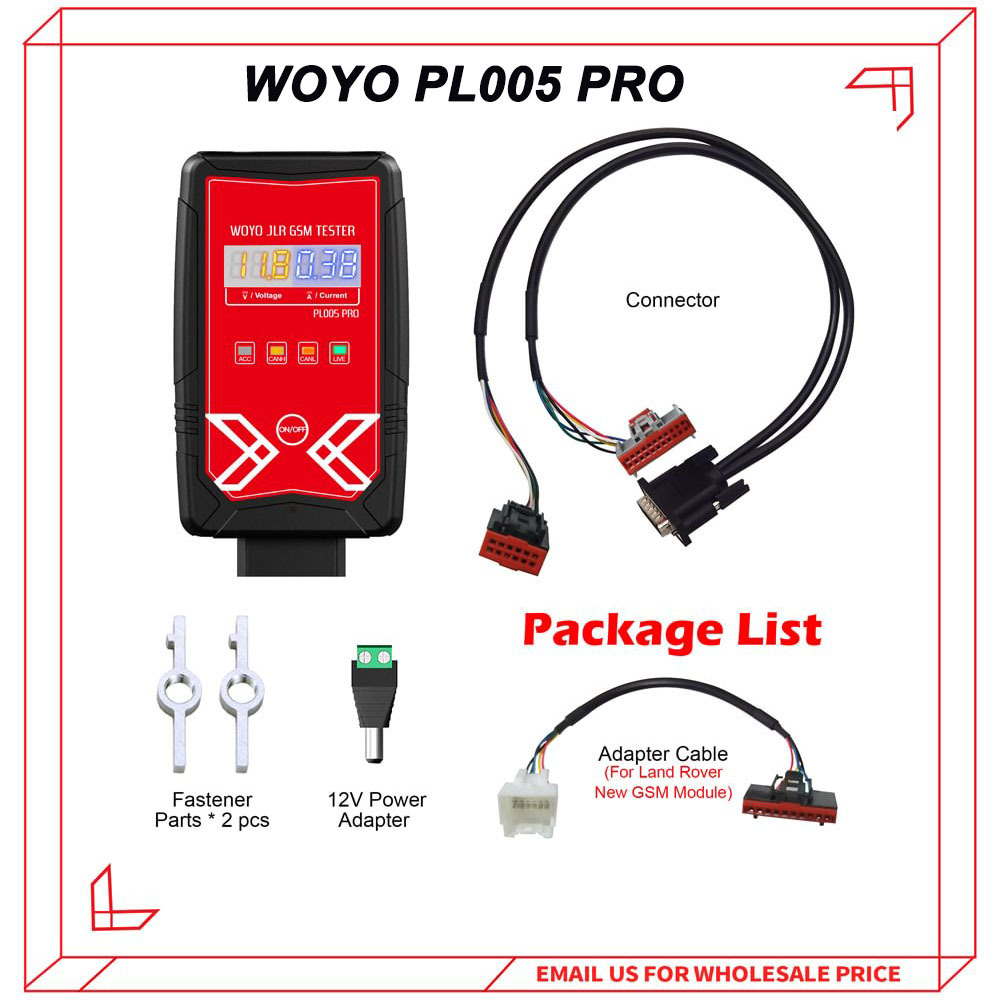

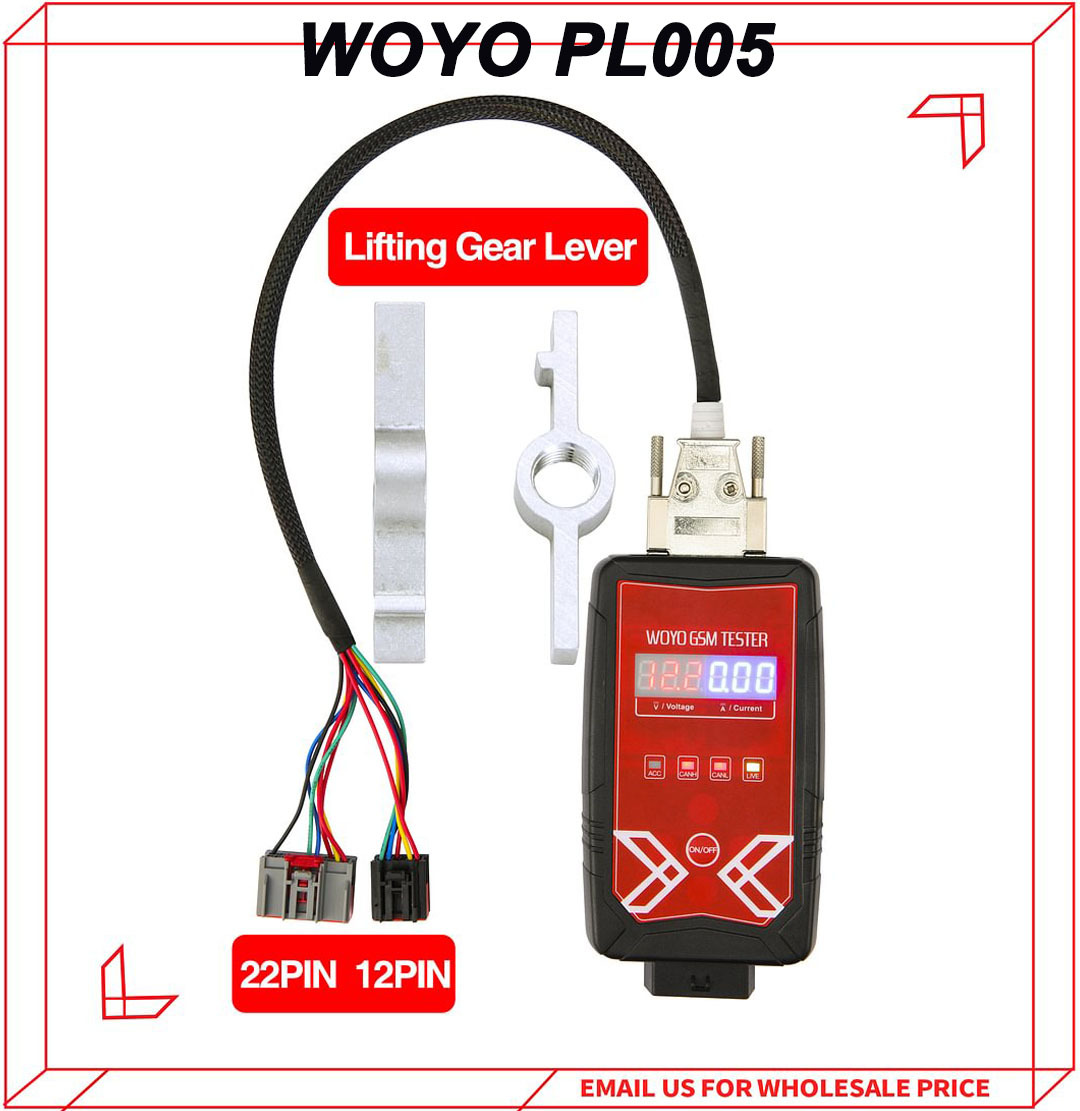

Pack List:
1pcs Main unit
1pcs 12&22pin Cable
2pcs Lifting Gear Lever
1pcs 10pin Cable (for PL005 PRO only)
Package Size: 18.5*14.5*3.3cm
Package Weight: 0.35kg
