BMW CAS3 Test Platform on Bench Harness OFF Programming Adapters - Optional Extra Plugs

Test Platform Cable for BMW  CAS3


It support all BMW CAS3 IMMO types. Including BMW 3 series, 5 series, X series.
It also supports both gasoline and diesel.

For example: MINI R55 R56 R60 E60 E61 E63 E64 E70 E71 E81 E82 E87 E88 E90 E91 E92 E93..and much more!


This test platform is used for connecting the CAS3, Dashboard, JBE on the bench, you can do key programming on the bench , mileage correction

Note:
1. This bench test harness is mainly designed for CAS3 module testing. Also can be used for CAS2 but only compatiable with CAS2 module with plastic housing. Can not use it to test other modules on a car with CAS2. such as Gateway, FRM, ECU, TCU...
2. The start button is the original button, which is special for CAS3
3. When testing cas2, if the vehicle has ELV module, the ELV must be connected first, otherwise the ignition cannot be started

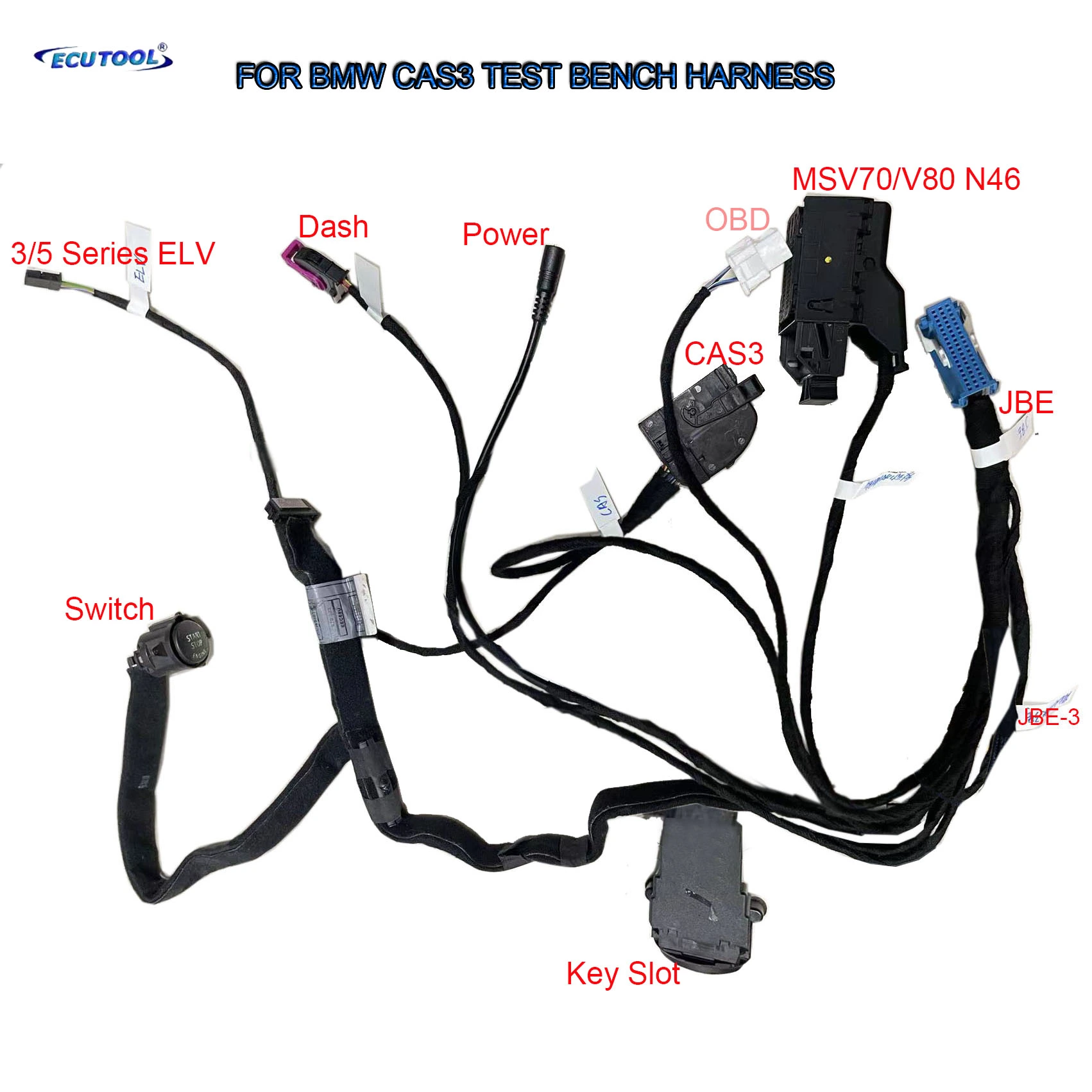

Picture of BMW CAS3 Test Platform Basic model

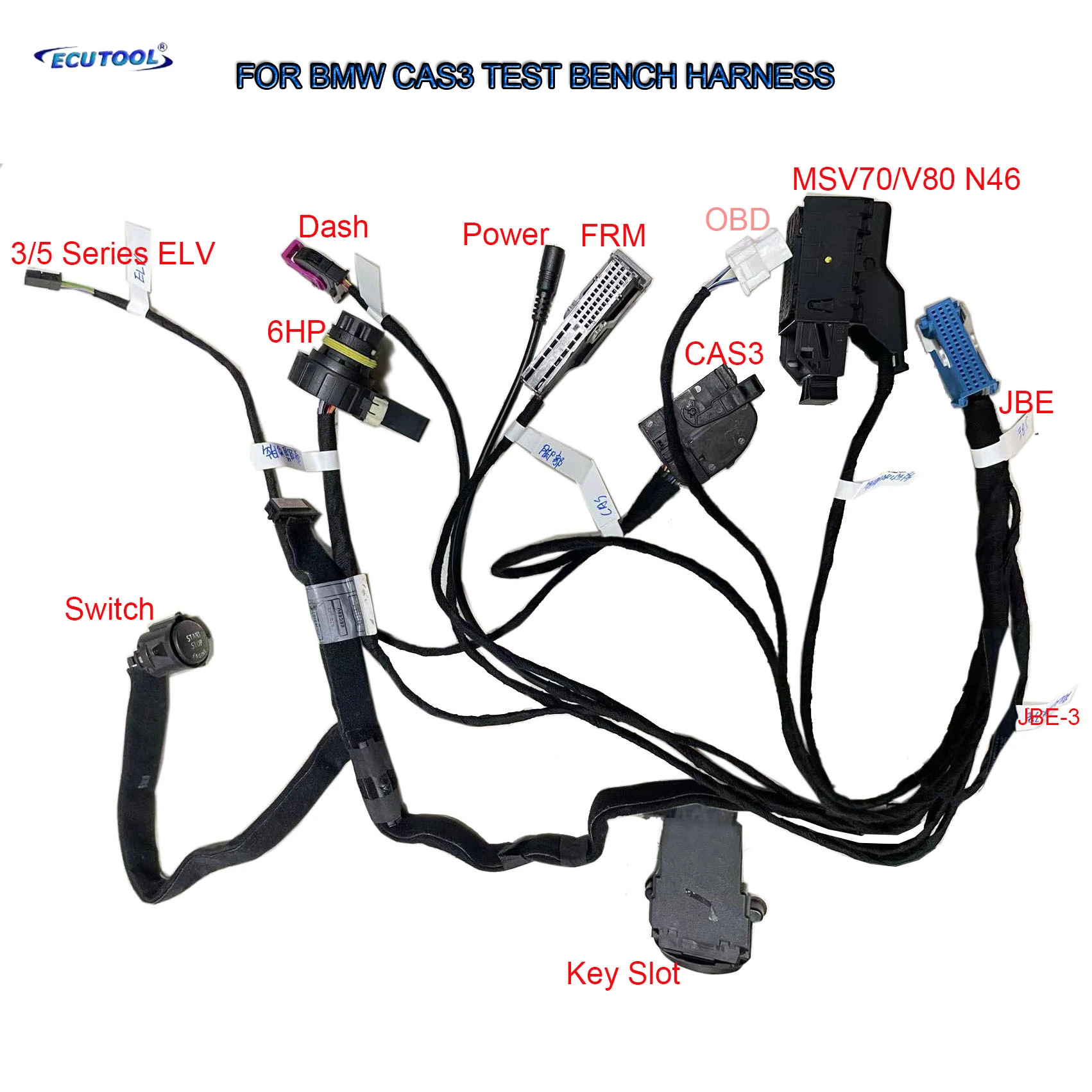

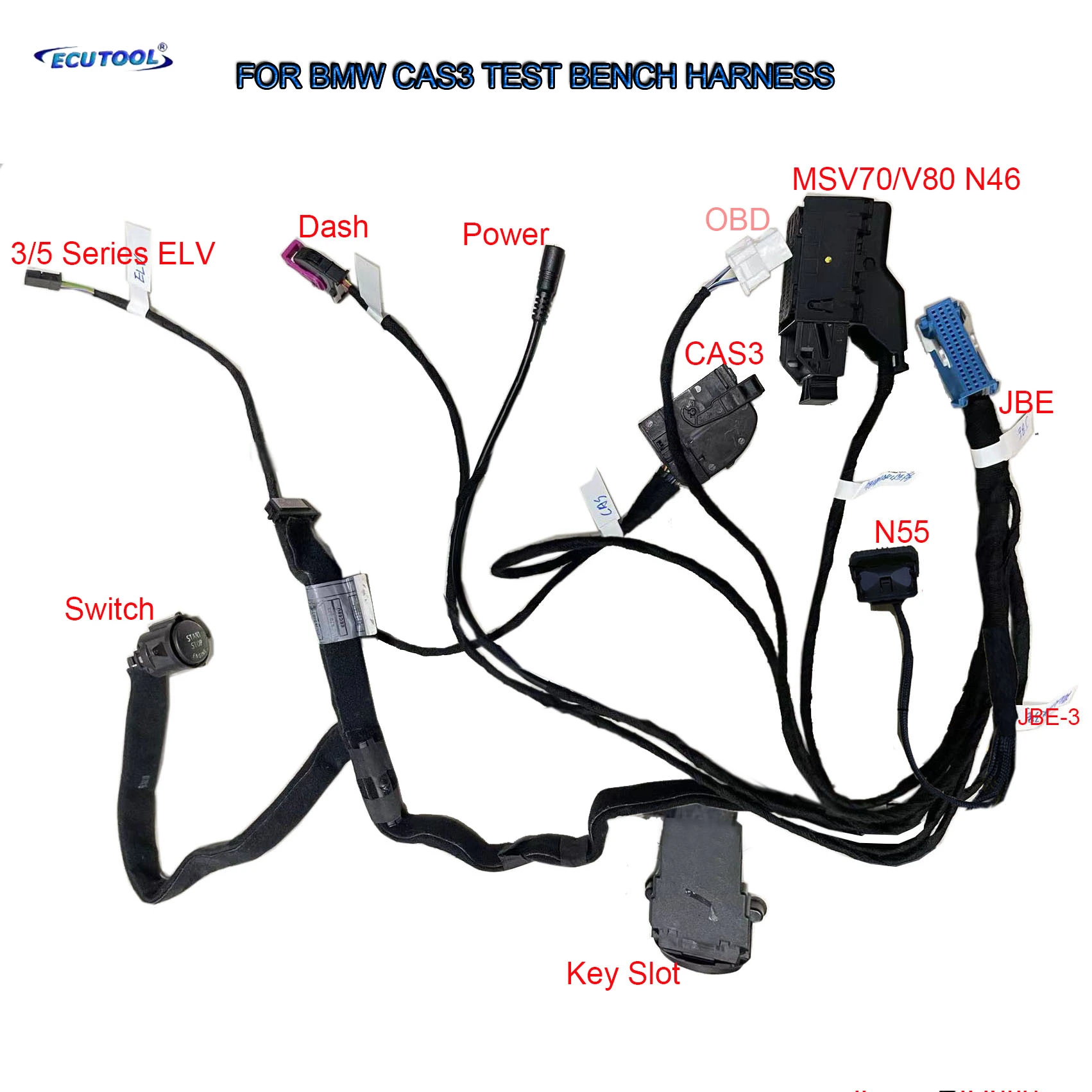

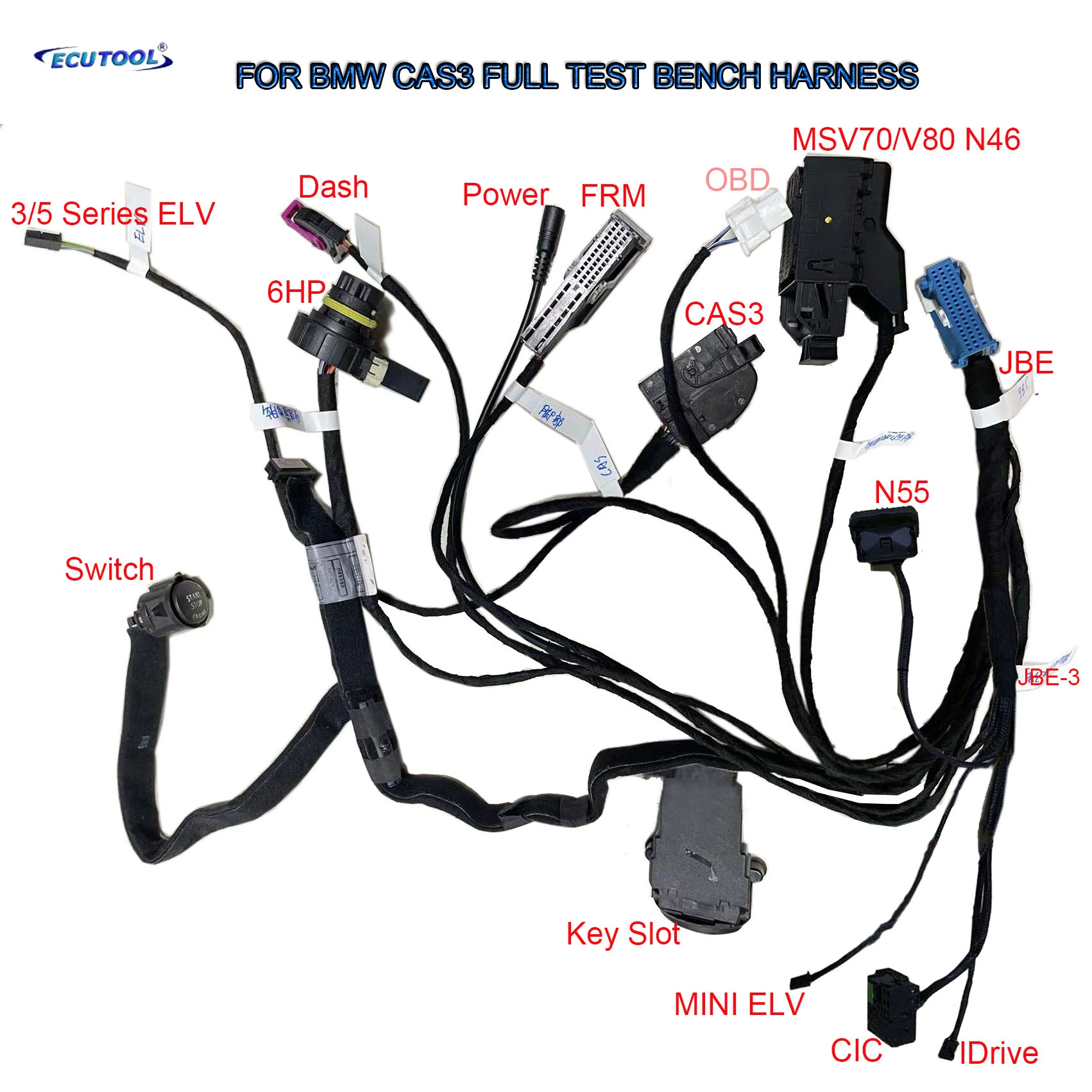

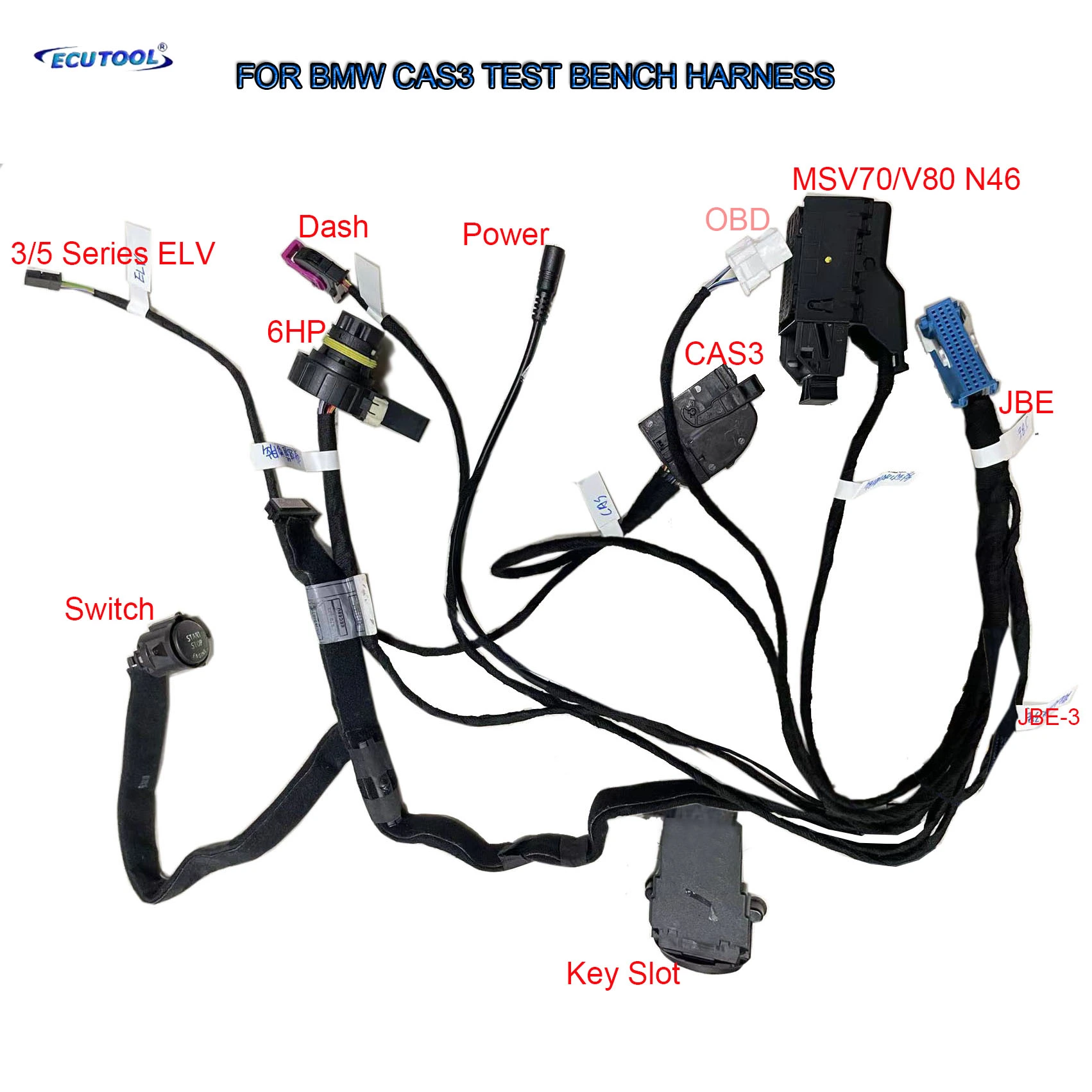

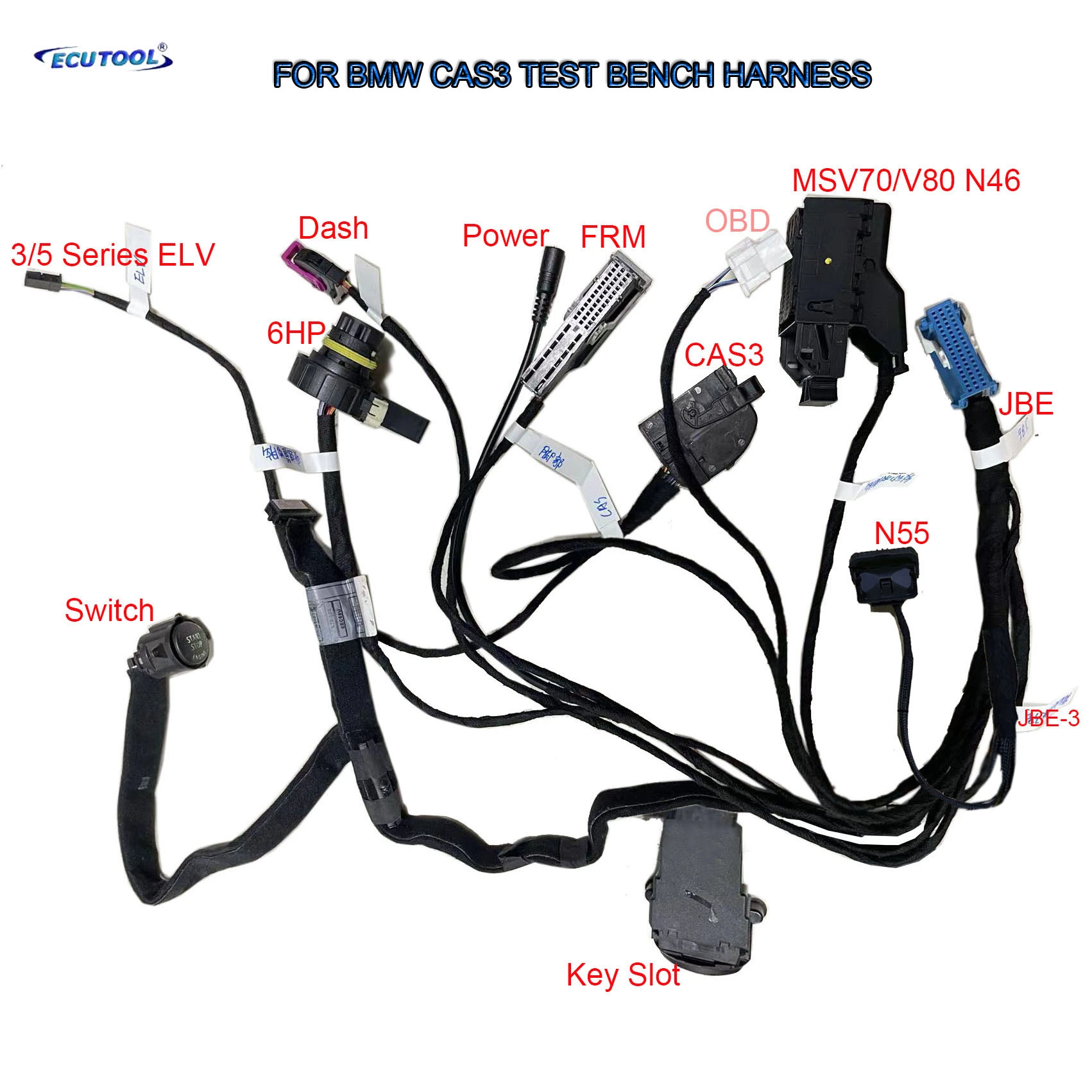

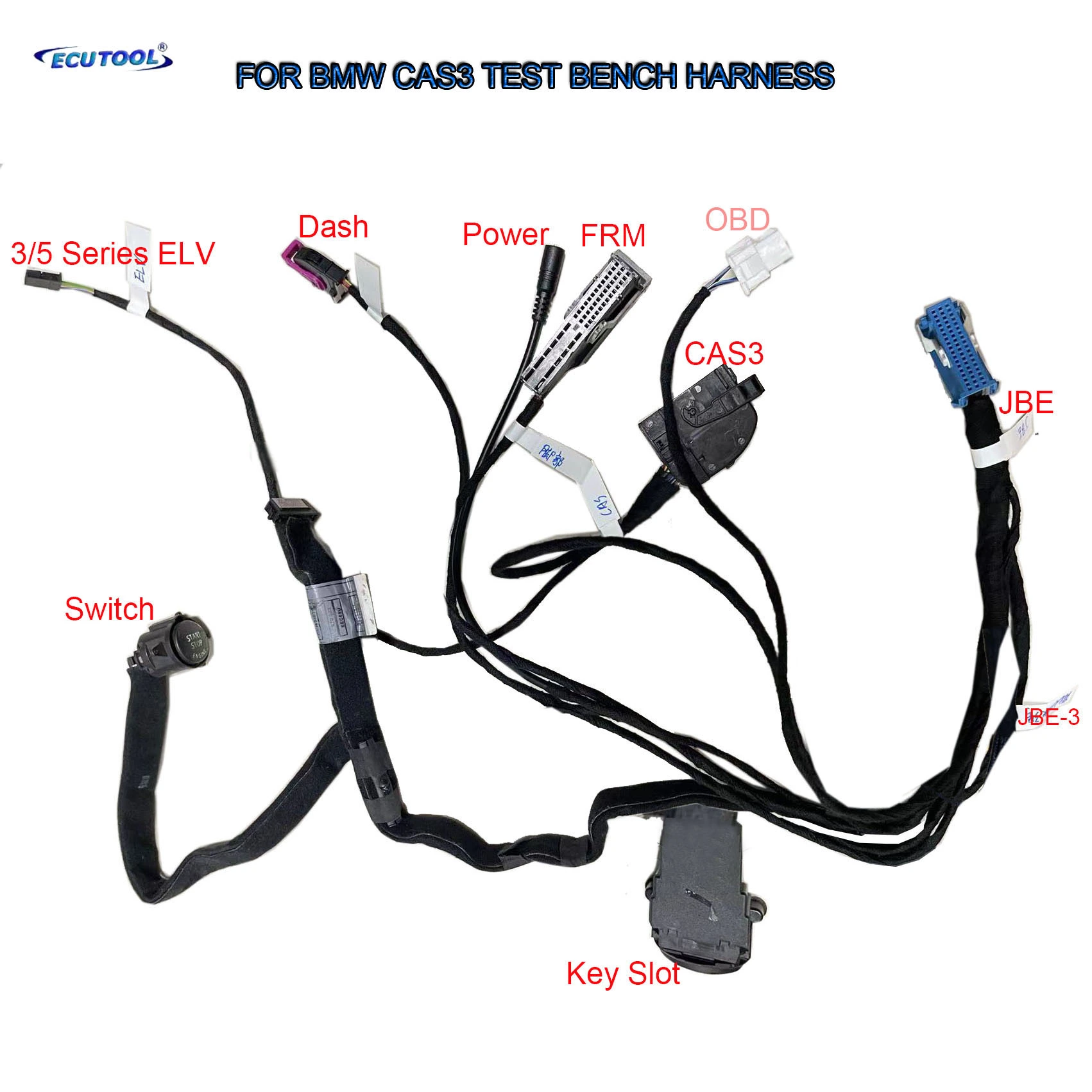

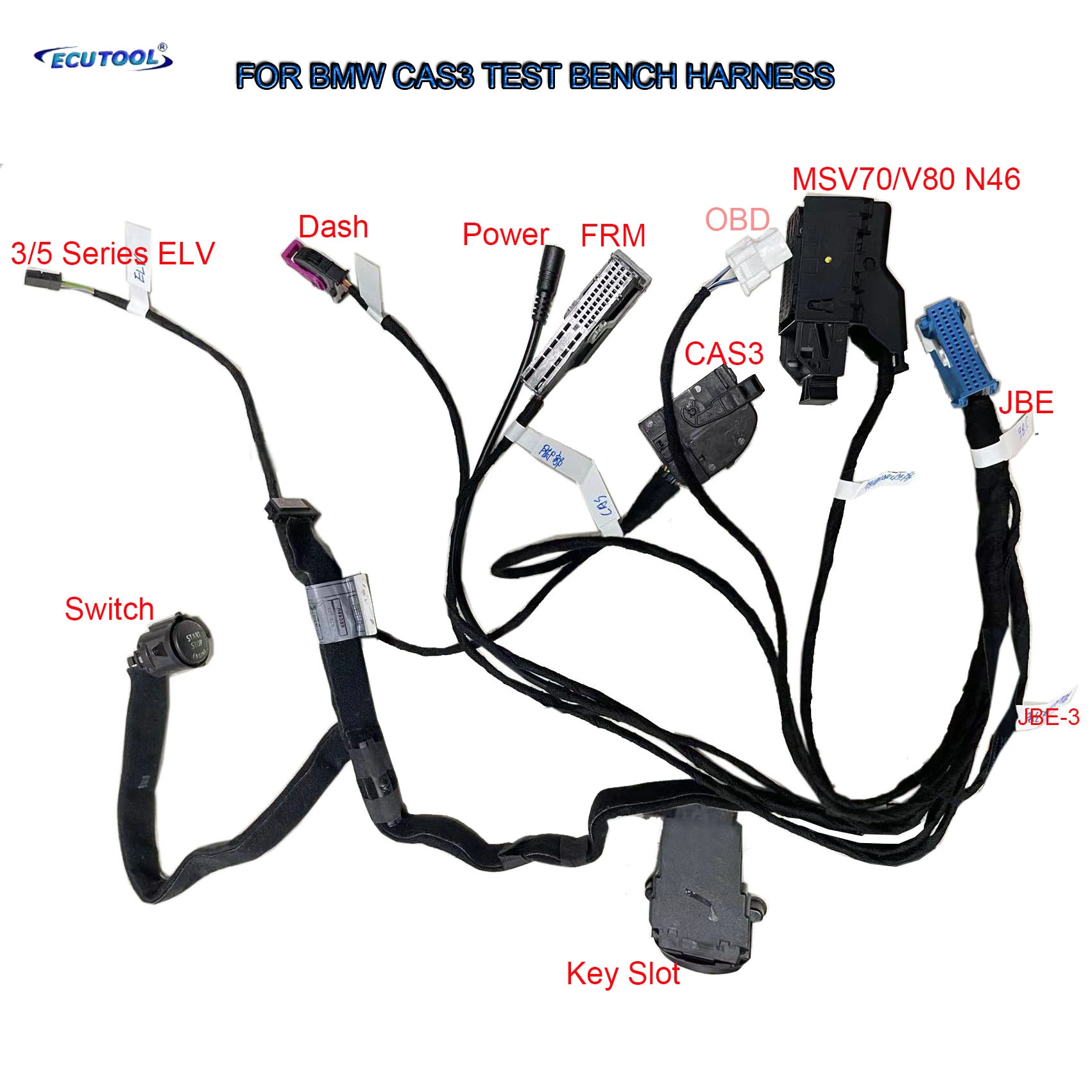

Other Plugs for 6HP EGS, IDrive, CIC, DME(N55, MSV70, MSV80, N46) can be added as customized.
